Contact Us on WhatsApp- Material: AISI 1070 / 70 C Spring Steel
- Conforming to DIN472 / IS 3075-2

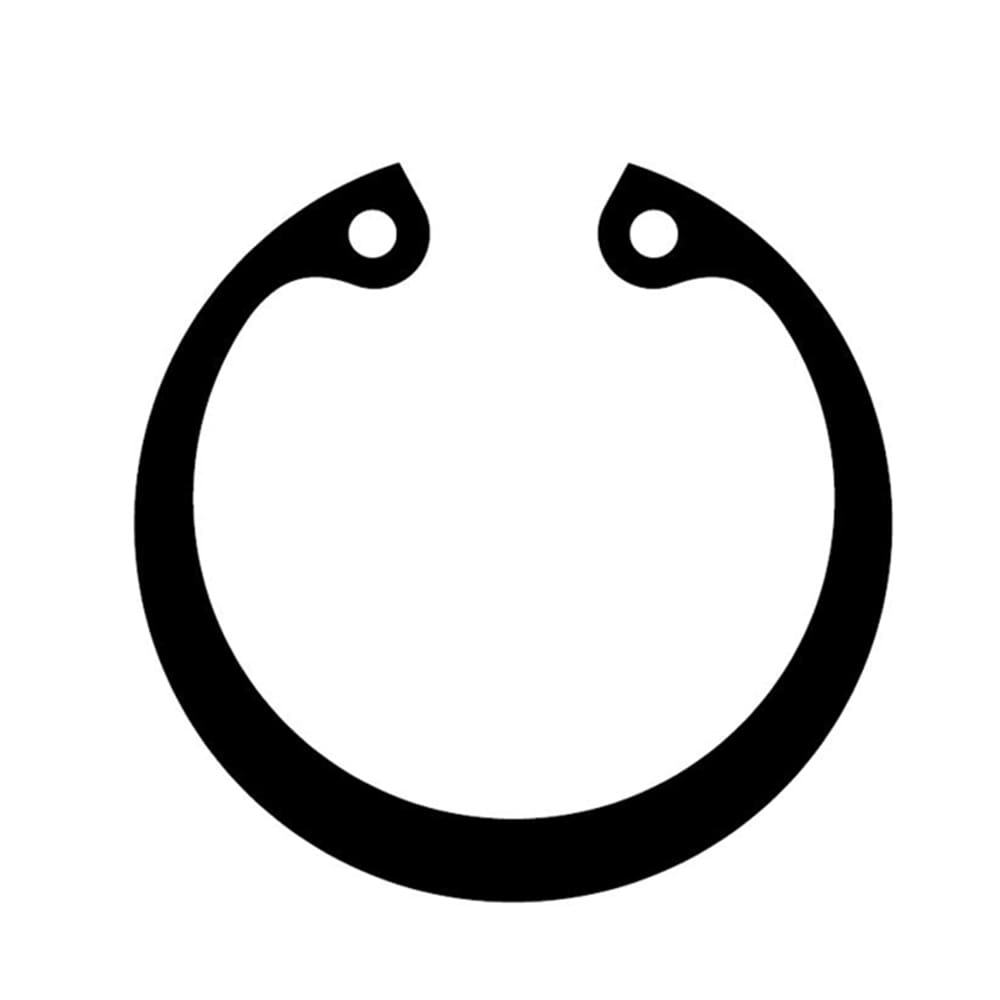

Internal Circlip – DIN472 / IS3075-2 (B-type)
Our Internal Circlips are engineered to DIN472 and IS3075-2 standards, ensuring a perfect fit for a wide range of industrial applications. These circlips are made from premium AISI 1070 / 70 C Spring Steel and offer exceptional strength and durability. They are available in sizes ranging from 8mm to 200mm, catering to diverse requirements. These circlips are designed for easy installation, providing a secure and reliable retention for components within a bore or housing. Their uniform chemical composition enhances performance in various environments.
For pricing details or to place an order, click the button below to contact us on WhatsApp or Email us.
- Carbon (C): 0.70%
- Silicon (Si): 0.203%
- Manganese (Mn): 0.749%
- Phosphorus (P): 0.0209%
- Sulphur (S): 0.0045%
- Chromium (Cr): 0.0174%
- Molybdenum (Mo): 0.0021%
- Nickel (Ni): 0.0056%
- Aluminium (Al): 0.0012%
- Cobalt (Co): 0.0096%
- Copper (Cu): 0.0085%
- Niobium (Nb): 0.0040%
- Titanium (Ti): 0.00070%
- Vanadium (V): 0.00050%
- Tungsten (W): 0.0100%
- Lead (Pb): 0.0030%
- Tin (Sn): 0.00050%
- Boron (B): 0.00065%
- Iron (Fe): 98.3%
- Range: 8mm to 200mm
- Special sizes like STA, H.D, SQ, RL, SPL, and L available
