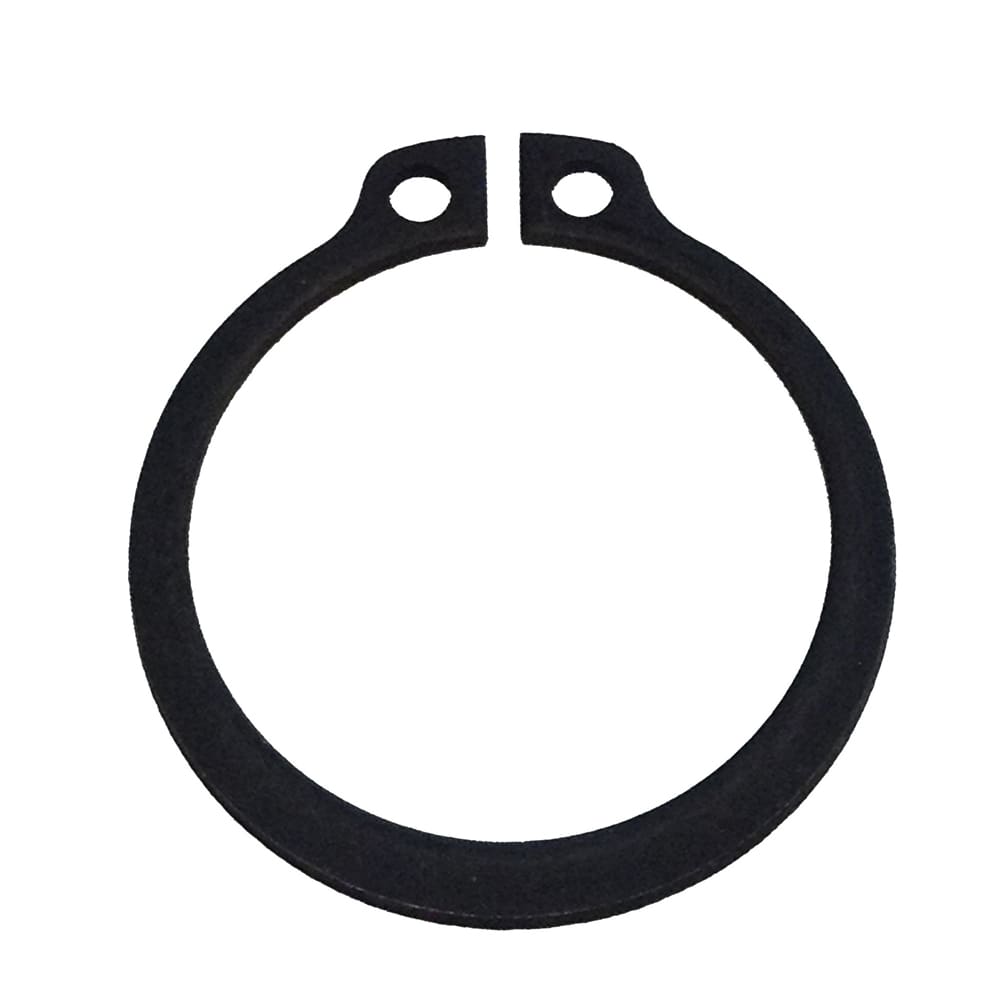

External Circlip – DIN471 / IS3075-1 (A-type)

Our External Circlips, conforming to DIN471 and IS3075-1 standards, are crafted from high-quality AISI 1070 / 70 C Spring Steel, ensuring durability and reliability. Designed for securing components on shafts, they are available in a wide range of sizes from 4mm to 150mm. These circlips feature a uniform chemical composition, making them ideal for a variety of industrial applications. Their robust design ensures a secure fit, preventing lateral movement and offering excellent retention capability.

For pricing details or to place an order, click the button below to contact us on WhatsApp or Email us.

Material: AISI 1070 / 70 C Spring Steel
Conforming to DIN471 / IS 3075

Carbon (C): 0.70%
Silicon (Si): 0.203%
Manganese (Mn): 0.749%
Phosphorus (P): 0.0209%
Sulphur (S): 0.0045%
Chromium (Cr): 0.0174%
Molybdenum (Mo): 0.0021%
Nickel (Ni): 0.0056%
Aluminium (Al): 0.0012%
Cobalt (Co): 0.0096%
Copper (Cu): 0.0085%
Niobium (Nb): 0.0040%
Titanium (Ti): 0.00070%
Vanadium (V): 0.00050%
Tungsten (W): 0.0100%
Lead (Pb): 0.0030%
Tin (Sn): 0.00050%
Boron (B): 0.00065%

Range: 4mm to 150mm
Heavy-duty (H.D) options available for specific sizes
